A Drum Adversary!

Soviet "Foxtrot" Class Diesel Sub



Back

Next

Statistics

NATO Designator: Foxtrot
Russian Designator: Project 641
Built: 1972 Sudomekh Shipyard Leningrad
Decommissioned: 1994
Crew: 56 enlisted, 10 midshipmen, 12 officers
Propulsion:
3 x Kolomna 2D42M diesels, 2000hp each
3 x electric motors, 2 x 1350hp, 1 x 2700hp
1 x auxiliary motor 180hp
3 x 6 bladed screws
Length: 299ft 6in
Beam:  24ft 7in
Draft: 20ft
Max Depth: 985ft
Range:
20,000nm @ 8kts (surf)
11,000nm snorkeling
380nm @ 2kts (subm)
Endurance:
3-5 days submerged
Displacement:
Surfaced 1952 tons
Submerged 2475 tons
Speed: 16kts surface,
15kts submerged,
9kts snorkeling
Torpedoes:
22 torpedoes (21 in)
10 torpedo tubes,
6 bow, 4 stern

Topside Views

Click on Thumbnail for enlarged picture

A view of the aft
part of the Sail.
Exhaust port, HF whip
antenna, Radar mast,
and the 2
periscopes

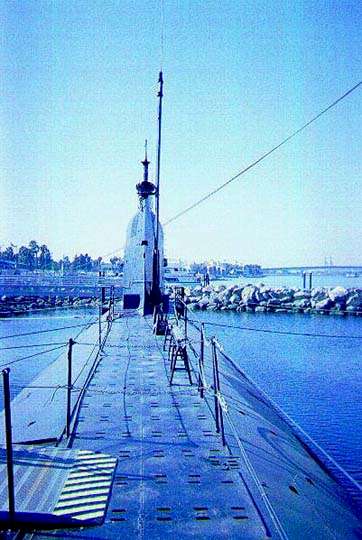

A view forward from
the aft deck

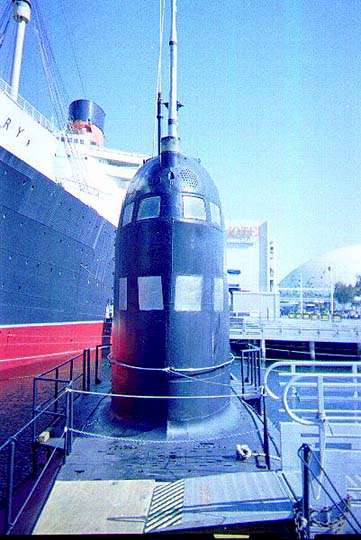

A view aft from the
forward deck
